KBPC3506, KBPC35005 - Single Phase Glass Passivated Bridge Rectifiers

Name: KBPC3506
SKU: KBPC3506-898361

Kingtronics

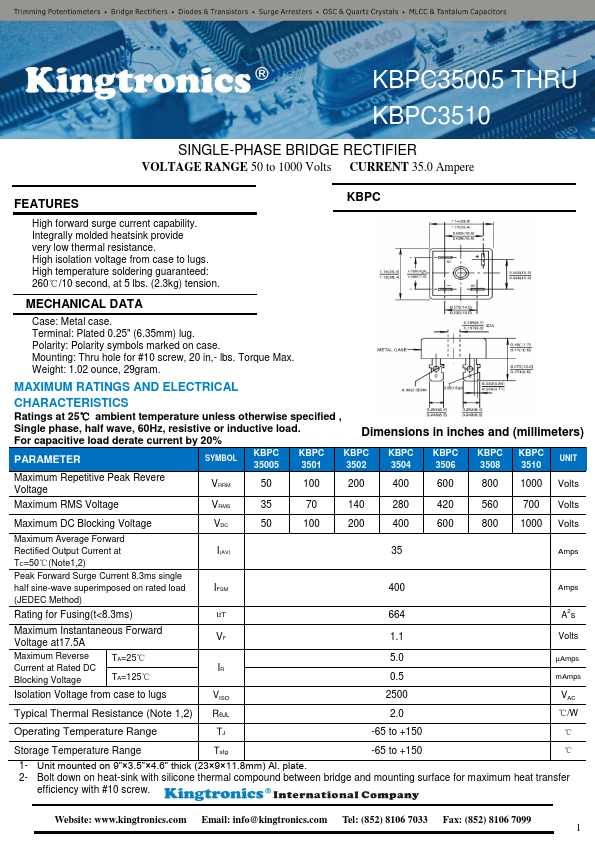

The KBPC3506 by Kingtronics is a Single Phase Glass Passivated Bridge Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	KBPC3506, KBPC35005
Manufacturer	Kingtronics
File Size	416.09 KB
Description	Single Phase Glass Passivated Bridge Rectifiers
Datasheet	KBPC35005-Kingtronics.pdf
Note	This datasheet PDF includes multiple part numbers: KBPC3506, KBPC35005. Please refer to the document for exact specifications by model.

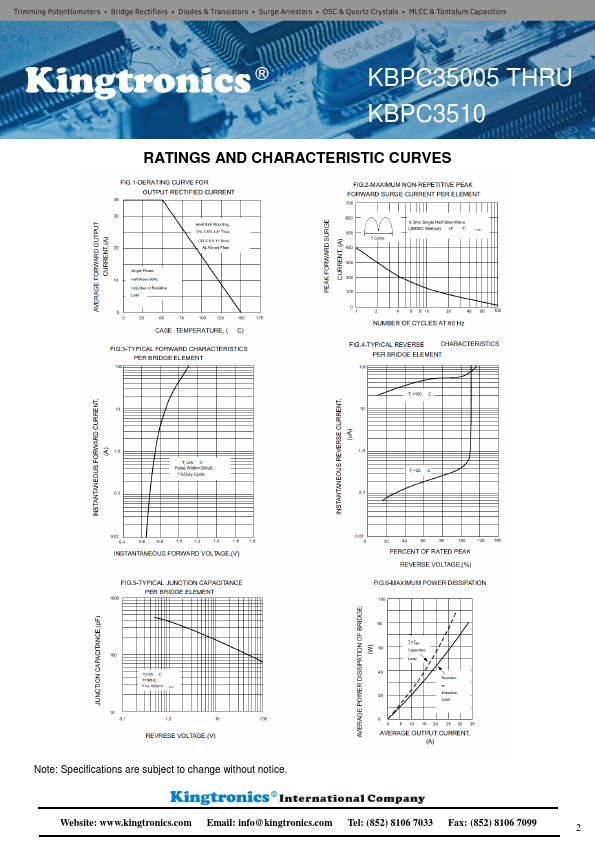

Additional preview pages of the KBPC3506 datasheet.

KBPC High forward surge current capability. Integrally molded heatsink provide very low thermal resistance. High isolation voltage from case to lugs. High temperature soldering guaranteed: 260℃/10 second, at 5 lbs. (2.3kg) tension.
