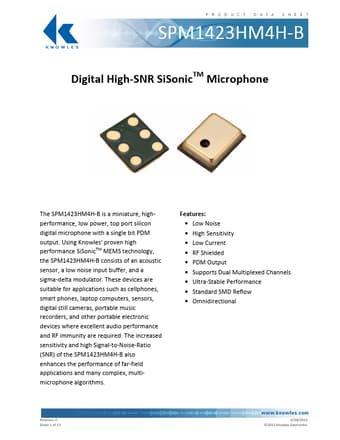

SPM1423HM4H-B - Digital High-SNR SiSonic Microphone

Product Overview

Knowles Electronics

Datasheet Details

Part number	SPM1423HM4H-B
Manufacturer	Knowles Electronics
File Size	642.18 KB
Description	Digital High-SNR SiSonic Microphone
Datasheet	SPM1423HM4H-B Datasheet
Additional preview pages of the SPM1423HM4H-B datasheet.

Product details

Description

Ground Lo/Hi (L/R) Select This pin is internally pulled low.Ground Clock Input PDM Output Power Supply Notes:Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified.Dimensions are in millimeters unless otherwise specified.Tolerance is ±0.15mm unless otherwise specified Revision: D Sheet 7 of 13 6/18/2013 ©2013 Knowles Electronics 8. EXAMPLE LAND PATTERN SPM1423HM4H-B 9. EXAMPLE SOLDER STENCIL PATTERN Notes: Dimensions are in millimeters unless otherwise specifi

Features

Low Noise.
High Sensitivity.
Low Current.
RF Shielded.
PDM Output.
Supports Dual Multiplexed Channels.
Ultra-Stable Performance.
Standard SMD Reflow.
Omnidirectional Revision: D Sheet 1 of 13 6/18/2013 ©2013 Knowles Electronics SPM1423HM4H-B 1.
