SPU0409HD5H-PB SiSonic Microphone

Power Supply Ground Ground Output Signal Notes: Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified. Dimensions are in millimeters unless otherwise specified. Tolerance is ±0.15mm unless otherwise specified Revision: F Sheet 5 of 11 3/27/2013 ©2013 Knowles Electronics.

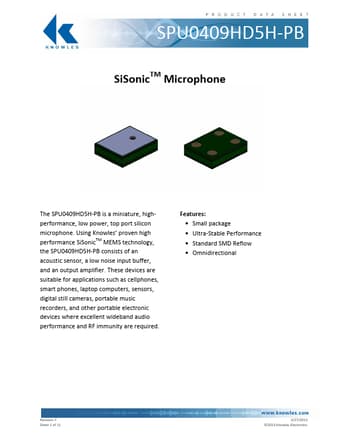

SPU0409HD5H-PB SiSonicTM Microphone The SPU0409HD5H-PB is a miniature, highperformance, low power, top port silicon microphone. Using Knowles’ proven high performance SiSonicTM MEMS technology, the SPU0409HD5H-PB consists of an acoustic sensor, a low noise input buffer, and an output amplifier. These devices are suitable for applications such as cellphones, smart phones, laptop computers, sensors, digital still cameras, portable music recorders, and other portable electronic devices where excel.

SPU0409HD5H-PB Features

* Small package

* Ultra-Stable Performance

* Standard SMD Reflow

* Omnidirectional Revision: F Sheet 1 of 11 3/27/2013 ©2013 Knowles Electronics SPU0409HD5H-PB 1. ABSOLUTE MAXIMUM RATINGS Parameter VDD to Ground OUT to Ground Input Current to Any Pin Temperature Range Absolute
