SPU0414HR5H-SB - Amplified SiSonic Microphone
Power Supply Ground Connect resistor to set gain Output Signal Notes: Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified.
Dimensions are in millimeters unless otherwise specified.
Tolerance is ±0.15mm unless otherwise specified Revision: E Sheet 5 of 11 12/04/2012 ©2

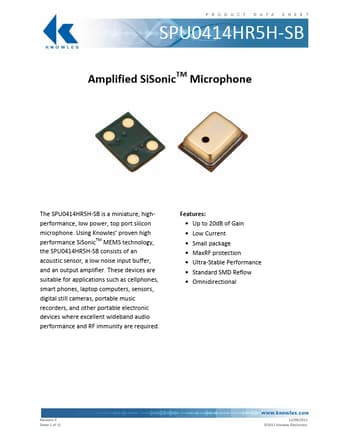

SPU0414HR5H-SB Amplified SiSonicTM Microphone The SPU0414HR5H-SB is a miniature, highperformance, low power, top port silicon microphone.
Using Knowles’ proven high performance SiSonicTM MEMS technology, the SPU0414HR5H-SB consists of an acoustic sensor, a low noise input buffer, and an output amplifier.
These devices are suitable for applications such as cellphones, smart phones, laptop computers, sensors, digital still cameras, portable music recorders, and other portable electronic devices w
SPU0414HR5H-SB Features
* Up to 20dB of Gain
* Low Current
* Small package
* MaxRF protection
* Ultra-Stable Performance
* Standard SMD Reflow
* Omnidirectional Revision: E Sheet 1 of 11 12/04/2012 ©2012 Knowles Electronics SPU0414HR5H-SB 1. ABSOLUTE MAXIMUM RATINGS Parameter VDD to Ground
