SPU0410HR5H-1 Datasheet - Knowles Electronics

SPU0410HR5H-1 - Precision SiSonic Microphone

Power Supply Ground Ground Output Signal Notes: Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified.

Dimensions are in millimeters unless otherwise specified.

Tolerance is ±0.15mm unless otherwise specified Revision: D Sheet 5 of 11 1/26/2014 ©2014 Knowles Electronics

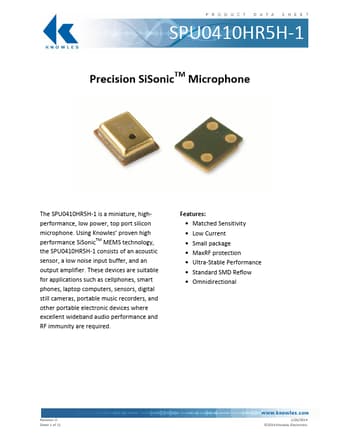

SPU0410HR5H-1 Precision SiSonicTM Microphone The SPU0410HR5H-1 is a miniature, highperformance, low power, top port silicon microphone.

Using Knowles’ proven high performance SiSonicTM MEMS technology, the SPU0410HR5H-1 consists of an acoustic sensor, a low noise input buffer, and an output amplifier.

These devices are suitable for applications such as cellphones, smart phones, laptop computers, sensors, digital still cameras, portable music recorders, and other portable electronic devices wher

SPU0410HR5H-1 Features

* Matched Sensitivity

* Low Current

* Small package

* MaxRF protection

* Ultra-Stable Performance

* Standard SMD Reflow

* Omnidirectional Revision: D Sheet 1 of 11 1/26/2014 ©2014 Knowles Electronics SPU0410HR5H-1 1. ABSOLUTE MAXIMUM RATINGS Parameter VDD to Ground

SPU0410HR5H-1-KnowlesElectronics.pdf

Preview of SPU0410HR5H-1 PDF
SPU0410HR5H-1 Datasheet Preview Page 2 SPU0410HR5H-1 Datasheet Preview Page 3

Datasheet Details

Part number:

SPU0410HR5H-1

Manufacturer:

Knowles Electronics

File Size:

815.02 KB

Description:

Precision sisonic microphone.
