SPU02N60 Datasheet - Siemens Semiconductor

SPU02N60 SIPMO Power Transistor

Preliminary data SPD02N60 SPU02N60 SIPMOS® Power Transistor N-Channel Enhancement mode Avalanche rated www.DataSheet4U.com Pin 1 G Pin 2 D Pin 3 S Type SPD02N60 SPU02N60 VDS ID 600 V 2 A RDS(on) @ VGS Package VGS = 10 V P-TO252 5.5 Ω P-TO251 Ordering Code Q67040-S4133 Q67040-S4127-A2 Maximum Ratings, at T j = 25 °C, unless otherwise specified Symbol Parameter Continuous drain current Value 2 1.3 8 135 Unit A ID T C = 25 °C T C = 100 °C Pulsed drain .

SPU02N60_SiemensSemiconductor.pdf

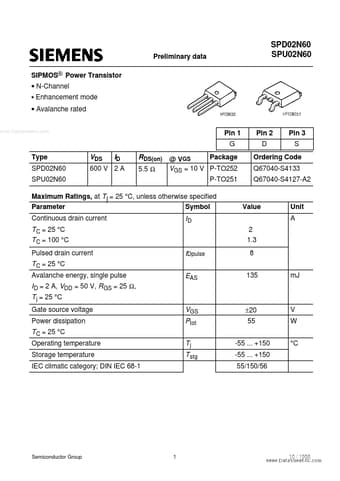

Preview of SPU02N60 PDF
SPU02N60 Datasheet Preview Page 2 SPU02N60 Datasheet Preview Page 3

Datasheet Details

Part number:

SPU02N60

Manufacturer:

Siemens Semiconductor

File Size:

123.53 KB

Description:

Sipmo power transistor.
