SPU28N05L Datasheet - Siemens Semiconductor

SPU28N05L SIPMOS Power Transistor

SPD28N05L SPU28N05L SIPMOS ® Power Transistor N channel Enhancement mode Logic Level Avalanche-rated dv /dt rated 175°C operating temperature Pin 1 Pin 2 Pin 3 G D S Type VDS 55 V 55 V ID 28 A 28 A RDS(on) 0.05 Ω 0.05 Ω Package Ordering Code SPD28N05L SPU28N05L P-TO252 P-TO251 Q67040 - S4122 - A2 Q67040 - S4114 - A2 Maximum Ratings Parameter Symbol Values Unit Continuous drain current TC = 25 °C TC = 100 °C ID A 28 20 .

SPU28N05L_SiemensSemiconductor.pdf

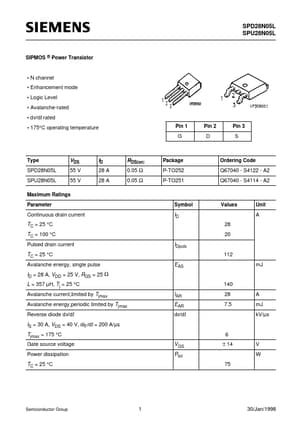

Preview of SPU28N05L PDF
SPU28N05L Datasheet Preview Page 2 SPU28N05L Datasheet Preview Page 3

Datasheet Details

Part number:

SPU28N05L

Manufacturer:

Siemens Semiconductor

File Size:

130.75 KB

Description:

Sipmos power transistor.
