SPU23N05 SIPMOS Power Transistor

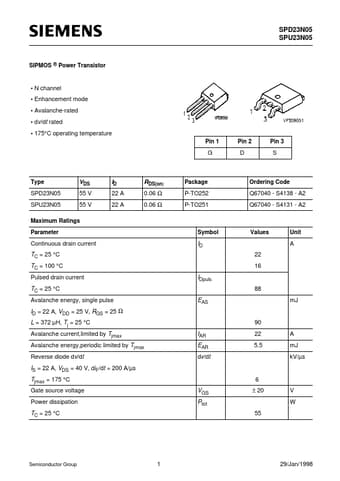

SPD23N05 SPU23N05 SIPMOS ® Power Transistor N channel Enhancement mode Avalanche-rated dv /dt rated 175°C operating temperature Pin 1 Pin 2 Pin 3 G D S Type VDS 55 V 55 V ID 22 A 22 A RDS(on) 0.06 Ω 0.06 Ω Package Ordering Code SPD23N05 SPU23N05 P-TO252 P-TO251 Q67040 - S4138 - A2 Q67040 - S4131 - A2 Maximum Ratings Parameter Symbol Values Unit Continuous drain current TC = 25 °C TC = 100 °C ID A 22 16 Pulsed drain current TC =.
