SPU1410LR5H-QB Datasheet - Knowles Electronics

SPU1410LR5H-QB Zero-Height SiSonic Microphone

Output Signal Ground Ground Power Supply Ground Ground Notes: Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified. Dimensions are in millimeters unless otherwise specified. Tolerance is ±0.15mm unless otherwise specified Revision: D Sheet 5 of 11 3/27/2013 ©2013 Knowl.

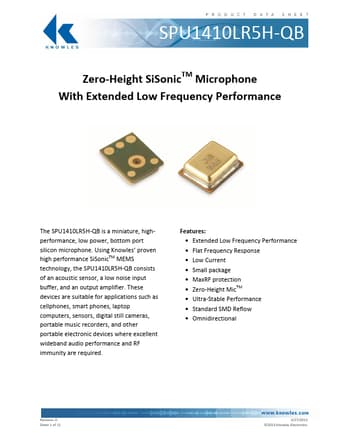

SPU1410LR5H-QB Zero-Height SiSonicTM Microphone With Extended Low Frequency Performance The SPU1410LR5H-QB is a miniature, highperformance, low power, bottom port silicon microphone. Using Knowles’ proven high performance SiSonicTM MEMS technology, the SPU1410LR5H-QB consists of an acoustic sensor, a low noise input buffer, and an output amplifier. These devices are suitable for applications such as cellphones, smart phones, laptop computers, sensors, digital still cameras, portable music recor.

SPU1410LR5H-QB Features

* Extended Low Frequency Performance

* Flat Frequency Response

* Low Current

* Small package

* MaxRF protection

* Zero-Height MicTM

* Ultra-Stable Performance

* Standard SMD Reflow

SPU1410LR5H-QB-KnowlesElectronics.pdf

SPU1410LR5H-QB Datasheet Preview — Preview of SPU1410LR5H-QB PDF

Datasheet Details

Part number:

SPU1410LR5H-QB

Manufacturer:

Knowles Electronics

File Size:

880.66 KB

Description:

Zero-height sisonic microphone.
