42BYGH301 Datasheet - KySan

42BYGH301 Stepper Motor

Fax Orders to 650-960-3875 HB Stepper Motors Step Angle 1.8°±5% Insulation Resistant 500V DC 100MO Min Insulation Strength 50Hz 1Minute 500V Min Ambient Temperature -20ºC~+50ºC Temperature Rise 80ºC Max Shaft Radial Play 0.02mm Max Shaft End Play 0.1-0.3mm Stepper Motor 42BYG/BYGH Series HB Stepper Motors Kysan # MFG# No.of Voltage Current Phase (V) (A) 1123001 42BYG014 4 8.5 0.45 Resistance Inductance (Ohms) (mH) 19 13 Holding Torque (g.cm) 1300 1123002 1123003 1123004 42BYG016 .

42BYGH301 Datasheet (160.89 KB)

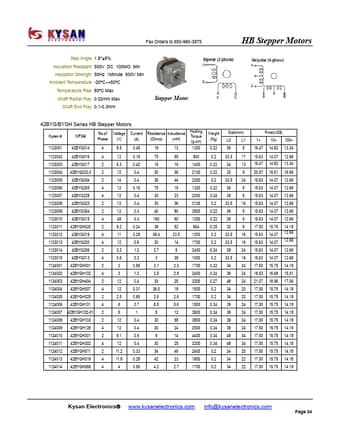

42BYGH301 Datasheet Preview — Preview of 42BYGH301 PDF

Datasheet Details

Part number:

42BYGH301

Manufacturer:

KySan

File Size:

160.89 KB

Description:

Stepper motor.
