ML7416N-060 - Sub-GHz (900 MHz Band) Broadband RF Transceiver IC

ML7416N-060 Description

ML7416N-060 Sub-GHz (900 MHz Band) Broadband RF Transceiver IC with Built-in MCU FEDL7416N-060-01 Issue date: Apr 30, 2015 1.General .
ML7416 is a low power consumption LSI for sub-GHz broadband radio communication, which integrates the MCU block and RF block in a single chip.

ML7416N-060 Features

* are shown below.
* For details of the RF block, refer to ML7396B Data Sheet (FJDL7396A_B_E).
* Industry-standard ARM Cortex-M0+ CPU core
* Maximum operating frequency: 40 MHz
* 512 KB flash memory (for program [256 KB x 2 bank configuration is possible]. Can be used as data f

📥 Download Datasheet

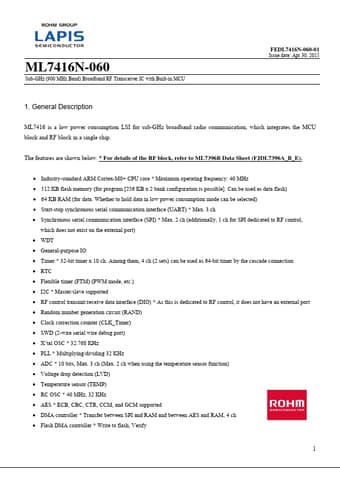

Preview of ML7416N-060 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ML7416N-060
Manufacturer
LAPIS
File Size
538.25 KB
Datasheet
ML7416N-060-LAPIS.pdf
Description
Sub-GHz (900 MHz Band) Broadband RF Transceiver IC
