LC3406

1.2A 1.5MHz 7V Synchronous Buck Converter

LC3406 Features

* High Efficiency: Up to 96%

* Capable of Delivering 1.2A

* 1.5MHz

LC3406 General Description

The LC3406 is a high-efficiency, DC-to-DC stepdown switching regulators, capable of delivering up to 1.2A of output current. The device operates from an input voltage range of 2.6V to 7.0V and provides an output voltage from 0.6V to VIN, making the LC3406 ideal for low voltage power conversions. Run.

LC3406 Datasheet (534.96 KB)

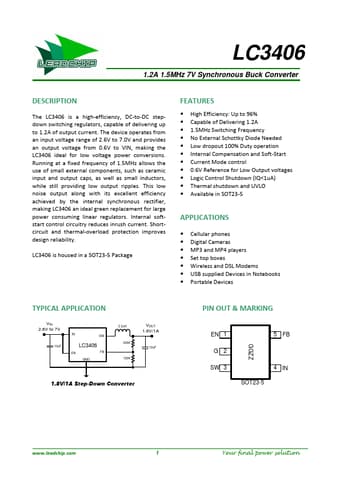

Preview of LC3406 PDF

Datasheet Details

Part number:

LC3406

Manufacturer:

LEADCHIP

File Size:

534.96 KB

Description:

1.2a 1.5mhz 7v synchronous buck converter.
