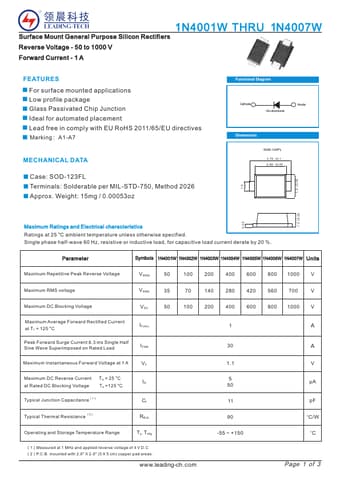

1N4001W THRU 1N4007W
Surface Mount General Purpose Silicon Rectifiers
Reverse Voltage - 50 to 1000 V
Forward Current - 1 A
FEATURES ■ For surface mounted applications ■ Low profile package ■ Glass Passivated Chip Junction ■ Ideal for automated placement ■ Lead free in comply with EU RoHS 2011/65/EU directives ■ Marking： A1-A7
MECHANICAL DATA
■ Case: SOD-123FL ■ Terminals: Solderable per MIL-STD-750, Method 2026 ■ Approx. Weight: 15mg / 0.00053oz
Functional Diagram
Cathode
Uni-directional
Anode
Dimensions
SOD-123FL 3.70 ±0.1 2.80 ±0.05
1.8 ±0.05
0.20 1.0
1.3 ±0.03
Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.
