1N4006W, 1N4001W-LEADING Surface Mount General Purpose Silicon Rectifiers

1N4006W Description

1N4001W THRU 1N4007W Surface Mount General Purpose Silicon Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 1 A .

1N4006W Applications

* Low profile package
* Glass Passivated Chip Junction
* Ideal for automated placement
* Lead free in comply with EU RoHS 2011/65/EU directives
* Markingļ¼š A1-A7 MECHANICAL DATA
* Case: SOD-123FL
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 15

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4006W, 1N4001W-LEADING. Please refer to the document for exact specifications by model.

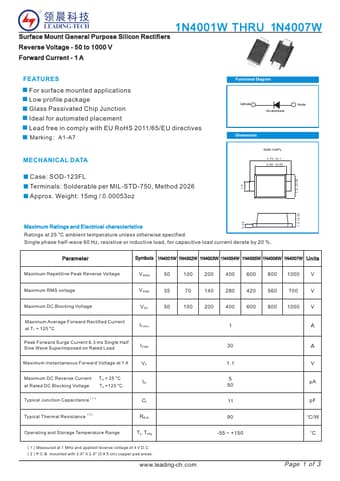

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N4006W, 1N4001W-LEADING
Manufacturer
LEADING-TECH
File Size
3.92 MB
Datasheet
1N4001W-LEADING-TECH.pdf
Description
Surface Mount General Purpose Silicon Rectifiers
Note
This datasheet PDF includes multiple part numbers: 1N4006W, 1N4001W-LEADING.
Please refer to the document for exact specifications by model.
