LZC-00CW0R

Cool White LED Emitter

LZC-00CW0R Features

* High Luminous Flux Density 12-die Cool White LED

* More than 40 Watt power dissipation capability

* Small foot print

* 9.0mm x 9.0mm

* Industry lowest thermal resistance per package size (0.7°C/W)

* Surface mount ceramic package with integrated glass lens

* Spatial

LZC-00CW0R General Description

The LZC-series 12-die White LED emitter has an electrical input power dissipation capability of more than 40 Watt electrical power in an extremely small package. With a small 9.0mm x 9.0mm ultra-small footprint, this package provides exceptional luminous flux density. The high quality materials used.

LZC-00CW0R Datasheet (1.16 MB)

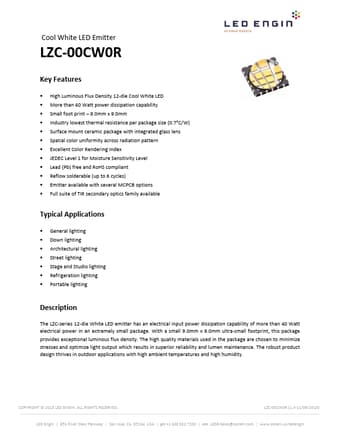

Preview of LZC-00CW0R PDF

Datasheet Details

Part number:

LZC-00CW0R

Manufacturer:

LED Engin

File Size:

1.16 MB

Description:

Cool white led emitter.
