LZC-00UA00 Datasheet - LED Engin

LZC-00UA00 - 400nm Violet LED Emitter

The LZC-series emitter is rated for 40W power handling in an ultra compact package.

With a small 9.0mm x 9.0mm footprint, this package provides exceptional radiant flux density.

The patented design has unparalleled thermal and optical performance.

The high quality materials used in the package are c

LZC-00UA00 Features

* Ultra-bright, compact 12-die, 400nm Violet LED

* Very high Radiant Flux density

* Small high density foot print, 9.0mm x 9.0mm

* Surface mount ceramic package with integrated glass lens

* Exceptionally low Thermal Resistance (0.7°C/W)

* Electrically neutral thermal slug

LZC-00UA00-LEDEngin.pdf

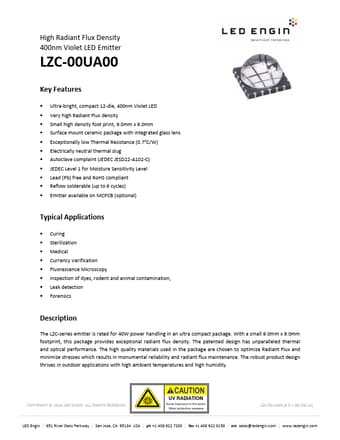

Preview of LZC-00UA00 PDF
LZC-00UA00 Datasheet Preview Page 2 LZC-00UA00 Datasheet Preview Page 3

Datasheet Details

Part number:

LZC-00UA00

Manufacturer:

LED Engin

File Size:

805.44 KB

Description:

400nm violet led emitter.
