Part number:
LZC-00GW00
Manufacturer:
LED Engin
File Size:
1.26 MB
Description:
Gallery white led emitter.

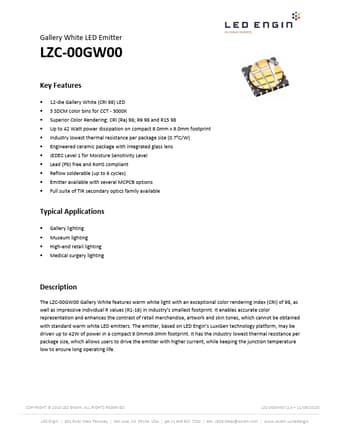

LZC-00GW00 Datasheet (1.26 MB)
* 12-die Gallery White (CRI 98) LED
* 3 SDCM color bins for CCT - 3000K
* Superior Color Rendering: CRI (Ra) 98; R9 98 and R15 98
* Up to 42 Watt power dissipation on compact 9.0mm x 9.0mm footprint
* Industry lowest thermal resistance per package size (0.7°C/W)
* Engineered
LZC-00GW00 Datasheet (1.26 MB)
LZC-00GW00
LED Engin
1.26 MB
Gallery white led emitter.
