LZC-03MD07

RGBW LED Emitter

LZC-03MD07 Features

* Ultra-bright, Ultra-compact 40W RGBW LED

* Individually addressable Red, Green, Blue and Daylight White channels

* Small high density foot print

* 9.0mm x 9.0mm

* Surface mount ceramic package with integrated glass lens

* Exceptionally low Thermal Resistance (0.7°C/W)

LZC-03MD07 General Description

The LZC-03MD07 RGBW LED emitter enables a full spectrum of brilliant colors with the highest light output, highest flux density, and superior color mixing available. It outperforms other colored lighting solutions with multiple red, green, blue and white LED die in a single, compact emitter. With 40.

LZC-03MD07 Datasheet (1.42 MB)

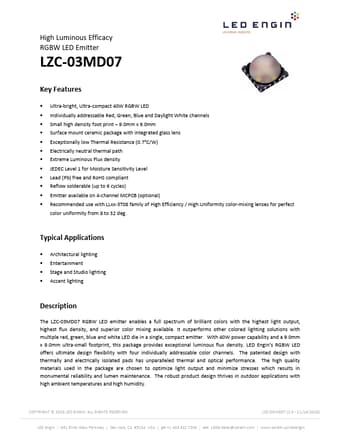

Preview of LZC-03MD07 PDF

Datasheet Details

Part number:

LZC-03MD07

Manufacturer:

LED Engin

File Size:

1.42 MB

Description:

Rgbw led emitter.
