CASR25-NP, CASR6-NP - Current transducer

LEM

📥 Download Datasheet

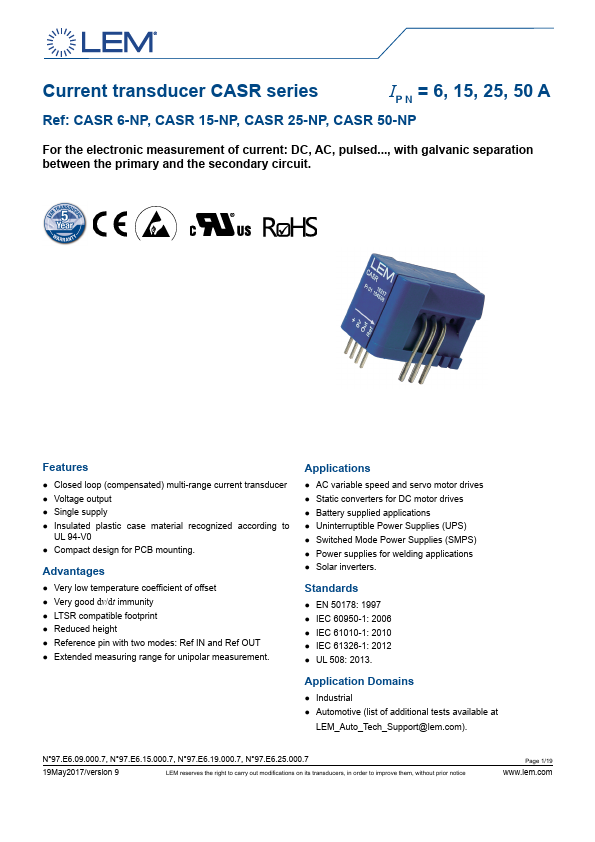

CASR25-NP Datasheet Preview — This datasheet PDF includes multiple part numbers: CASR25-NP, CASR6-NP. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

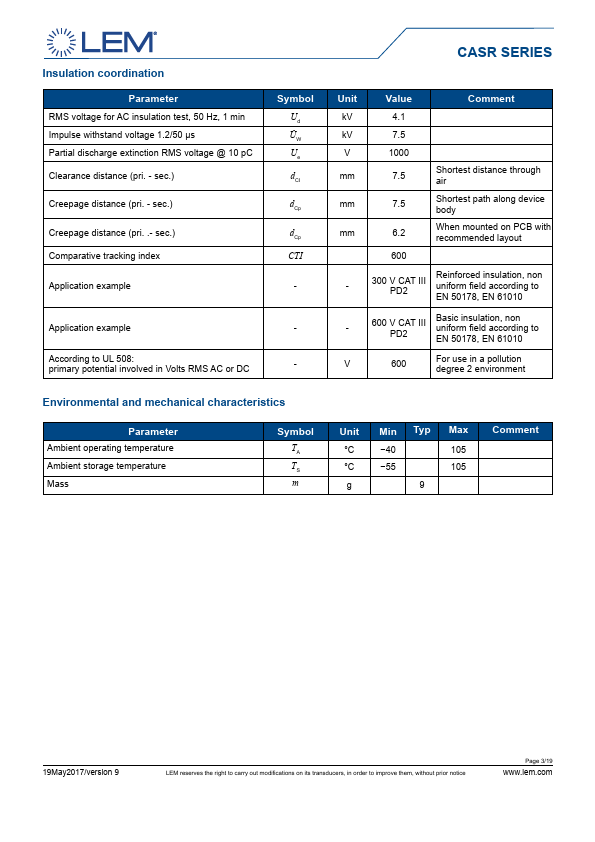

datasheet Preview Page 3

Datasheet Details

Part number	CASR25-NP, CASR6-NP
Manufacturer	LEM
File Size	2.65 MB
Description	Current transducer
Datasheet	CASR6-NP-LEM.pdf
Note	This datasheet PDF includes multiple part numbers: CASR25-NP, CASR6-NP. Please refer to the document for exact specifications by model.

CASR25-NP Product details

Features

Closed loop (compensated) multi-range current transducer.
Voltage output.
Single supply.
Insulated plastic case material recognized according to UL 94-V0.
Compact design for PCB mounting. Advantages.
Very low temperature coefficient of offset.
Very good dv/dt immunity.
LTSR compatible footprint.
Reduced height.
Reference pin with two modes: Ref IN and Ref OUT.
Extended measuring range f.
