LPSR50-NP, LPSR6-NP - Current Transducer

LEM

📥 Download Datasheet

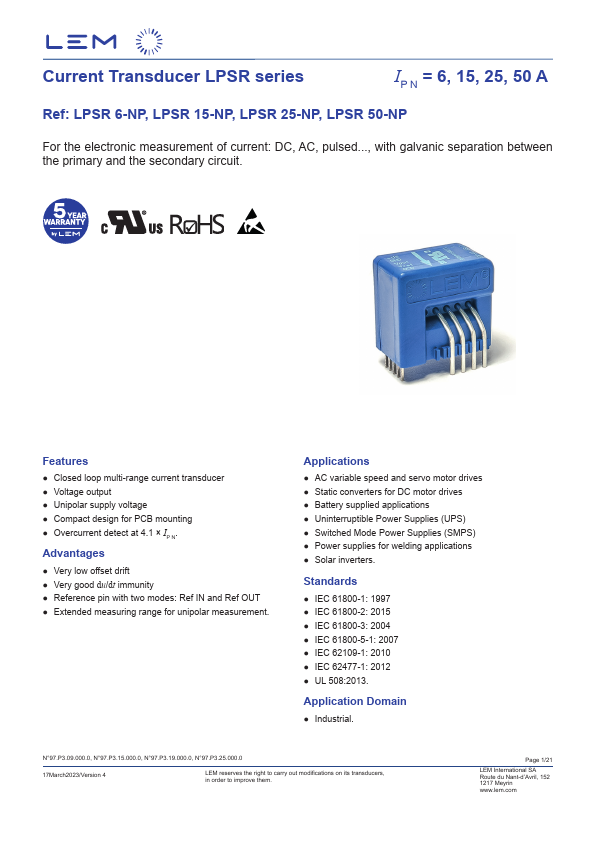

LPSR50-NP Datasheet Preview — This datasheet PDF includes multiple part numbers: LPSR50-NP, LPSR6-NP. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

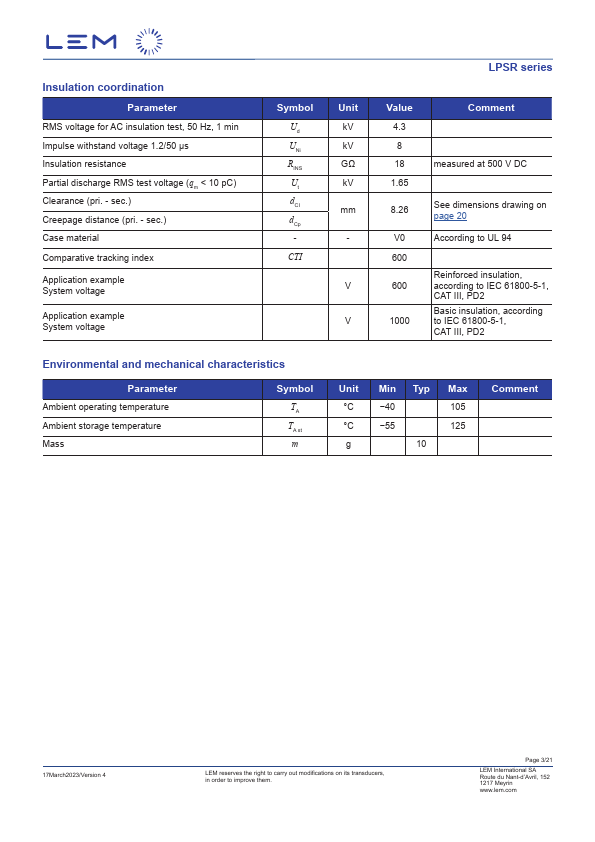

datasheet Preview Page 3

Datasheet Details

Part number	LPSR50-NP, LPSR6-NP
Manufacturer	LEM
File Size	1.96 MB
Description	Current Transducer
Datasheet	LPSR6-NP-LEM.pdf
Note	This datasheet PDF includes multiple part numbers: LPSR50-NP, LPSR6-NP. Please refer to the document for exact specifications by model.

LPSR50-NP Product details

Features

Closed loop multi-range current transducer.
Voltage output.
Unipolar supply voltage.
Compact design for PCB mounting.
Overcurrent detect at 4.1 × IP N. Advantages.
Very low offset drift.
Very good du/dt immunity.
Reference pin with two modes: Ref IN and Ref OUT.
Extended measuring range for unipolar measurement.
