LPM3810 1.2A Synchronous Step-down Converter

The LPM3810 is a 1.2A synchronous step-down DC/DC converter which integrates an inductor and a control IC adopting current mode control in one tiny package. External Schottky diodes are not required. LPM3810 can supply 1.2A of load current from 2.5V to 5.5V supply voltage. The Output voltage is ext.

LPM3810 Features

* Integrated inductor, Power MOSFETs and controller

* 2.5V to 5.5V Input Voltage Range

* 1200mA Load Current

* Efficiency: Up to 92% (VIN=5V, VOUT=3.3V, Iout=400mA)

* 1.5MHz Constant Switching Frequency

* 100% Duty Cycle in Dropout Operation

* Current Mode Control

* T

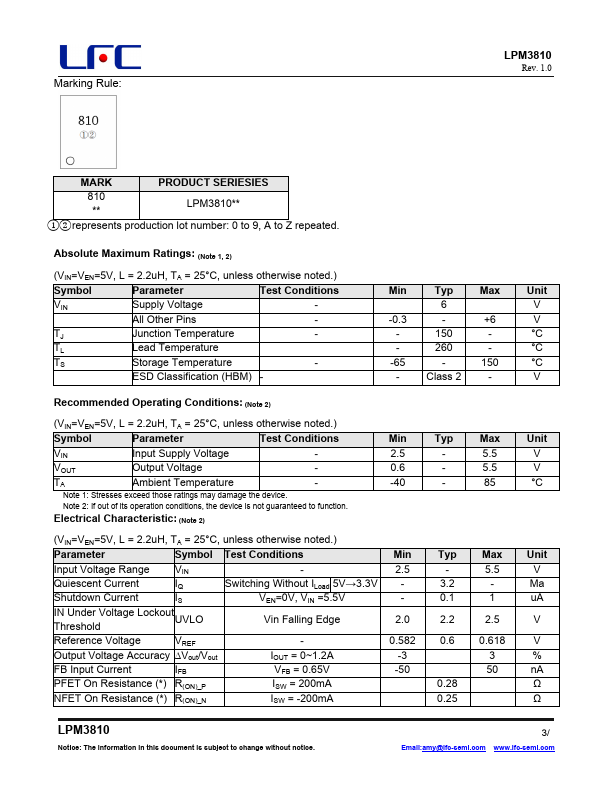

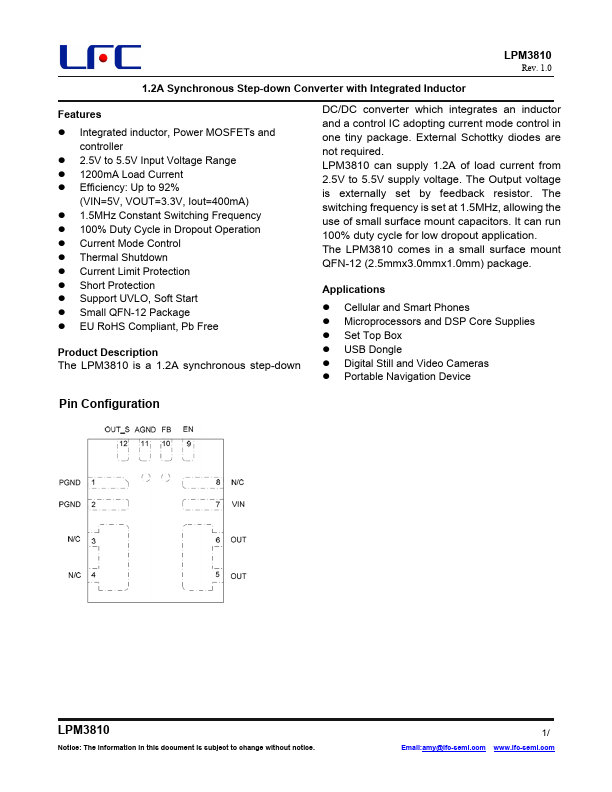

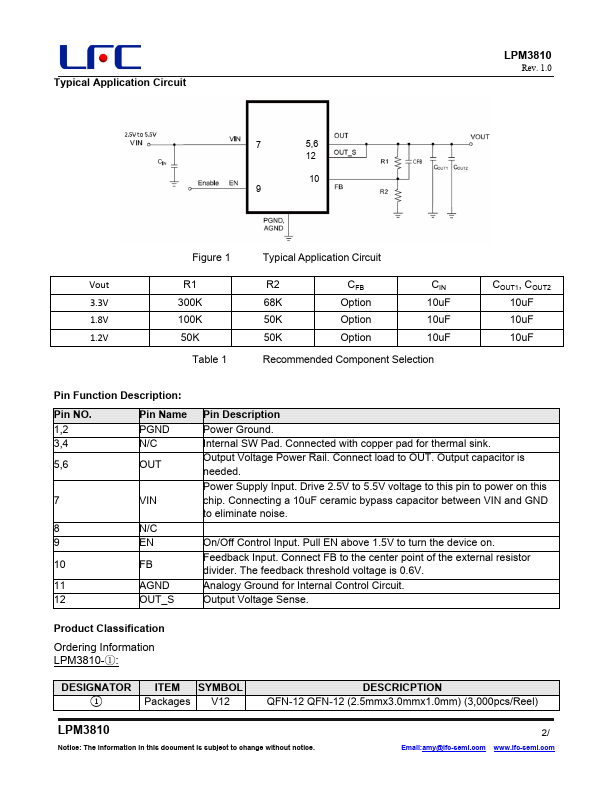

LPM3810-LFCsemi.pdf

Preview of LPM3810 PDF
LPM3810 Datasheet Preview Page 2 LPM3810 Datasheet Preview Page 3

Datasheet Details

Part number:

LPM3810

Manufacturer:

LFC semi

File Size:

440.75 KB

Description:

1.2a synchronous step-down converter.
