LPM-1153BMU801 - Full color dot matrix unit

Datasheet Summary

Features

1) 24×48 dot matrix. Dot size : φ2.8 2) Dimensions : 96mm×192mm 3) Rohm original Potting lens method make it possible to have High-Contrast & Wide-View display. 4) Over thousand million Colors at display is available by controlling 1,024 gray scale for each color. 5) 1 / 24 duty dynamic scan method. 6) Each color, each dot has built-in brightness adjustment circuit. 7) Brightness adjustment circuit is built-in to adjust the whole panel brightness. 8) Selector input select color scale clock sourc.

Datasheet Details

Part number	LPM-1153BMU801
Manufacturer	ROHM
File Size	129.36 KB
Description	Full color dot matrix unit
Datasheet	LPM-1153BMU801 Datasheet
Additional preview pages of the LPM-1153BMU801 datasheet.

📁 Similar Datasheet

LPM-1153BMU602 - Full color dot matrix unit (ETC)

LPM-1153BMU702 - Full color dot matrix unit (ETC)

LPM-NE2000 - Ethernet LAN Card (ETC)

LPM013M091A - Display Module (JDI)

LPM013M126A - Display Module (JDI)

Full PDF Text Transcription

Click to expand full text

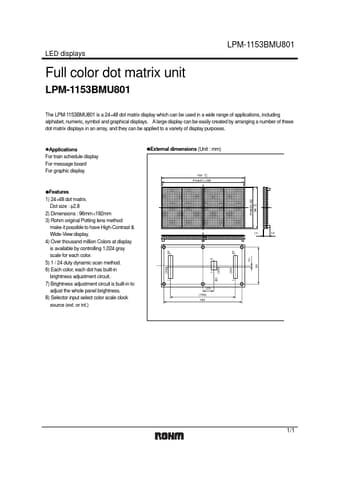

www.DataSheet4U.com LPM-1153BMU801 LED displays Full color dot matrix unit LPM-1153BMU801 The LPM-1153BMU801 is a 24×48 dot matrix display which can be used in a wide range of applications, including alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these dot matrix displays in an array, and they can be applied to a variety of display purposes. zApplications For train schedule display For message board For graphic display zExternal dimensions (Unit : mm) 192 +0.1 −0.4 P4 47=188 zFeatures 1) 24×48 dot matrix. Dot size : φ2.8 2) Dimensions : 96mm×192mm 3) Rohm original Potting lens method make it possible to have High-Contrast & Wide-View display.

Published: Feb 19, 2007 |
