LPM-5123U320 - 16 x 32 dot matrix unit

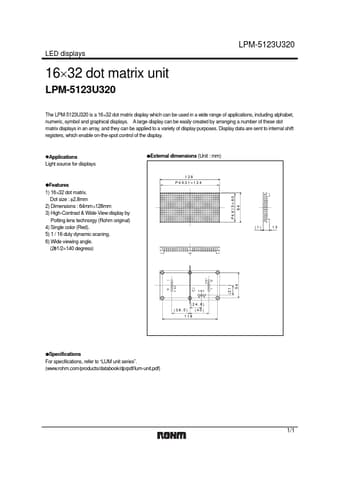

www.DataSheet4U.com LPM-5123U320 LED displays 16×32 dot matrix unit LPM-5123U320 The LPM-5123U320 is a 16×32 dot matrix display which can be used in a wide range of applications, including alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these dot matrix displays in an array, and they can be applied to a variety of display purposes. Display data are sent to internal shift registers, which enable on-the-spot control of the display..

LPM-5123U320 Features

* 1) 16×32 dot matrix. Dot size : φ2.8mm 2) Dimensions : 64mm×128mm 3) High-Contrast & Wide-View display by Potting lens technorgy (Rohm original) 4) Single color (Red). 5) 1 / 16 duty dynamic scaning. 6) Wide viewing angle. (2θ1/2=140 degress) 128 P4X31=124 P4X15=60 64 (1) 13 CN1 1 1 0 CN3 6

LPM-5123U320_Rohm.pdf

LPM-5123U320 Datasheet Preview — Preview of LPM-5123U320 PDF

Datasheet Details

Part number:

LPM-5123U320

Manufacturer:

ROHM ↗

File Size:

94.95 KB

Description:

16 x 32 dot matrix unit.
