LPM-5123MU350 Datasheet PDF - Rohm 16 x 32 dot matrix unit Specs

LPM-5123MU350 - 16 x 32 dot matrix unit

Datasheet Summary

Features

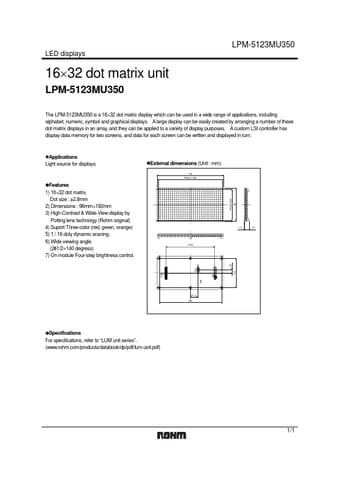

1) 16×32 dot matrix. Dot size : φ2.8mm 2) Dimensions : 96mm×192mm 3) High-Contrast & Wide-View display by Potting lens technorgy (Rohm original) 4) Suport Three-color (red, green, orange) 5) 1 / 16 duty dynamic scaning. 6) Wide viewing angle. (2θ1/2=140 degress) 7) On module Four-step brightness control. P6X15=90 96 (1) 13 (140) CN3 (9) CN2 (21.5) 180 zSpecifications For specifications, refer to “LUM unit series”. (www. rohm. com/products/databook/dp/pdf/lum-unit. pdf) CN1 84 1/1 Appen.

Datasheet Details

Part number	LPM-5123MU350
Manufacturer	ROHM
File Size	97.30 KB
Description	16 x 32 dot matrix unit
Datasheet	LPM-5123MU350 Datasheet
Additional preview pages of the LPM-5123MU350 datasheet.

📁 Similar Datasheet

LPM-1153BMU602 - Full color dot matrix unit (ETC)

LPM-1153BMU702 - Full color dot matrix unit (ETC)

LPM-NE2000 - Ethernet LAN Card (ETC)

LPM013M091A - Display Module (JDI)

LPM013M126A - Display Module (JDI)

Full PDF Text Transcription

Click to expand full text

www.DataSheet4U.com LPM-5123MU350 LED displays 16×32 dot matrix unit LPM-5123MU350 The LPM-5123MU350 is a 16×32 dot matrix display which can be used in a wide range of applications, including alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these dot matrix displays in an array, and they can be applied to a variety of display purposes. A custom LSI controller has display data memory for two screens, and data for each screen can be written and displayed in turn. zApplications Light source for displays zExternal dimensions (Unit : mm) 192 P6X31=186 zFeatures 1) 16×32 dot matrix. Dot size : φ2.
