LPM-5123D320 Datasheet PDF - Rohm 16 x 32 dot matrix unit Specs

LPM-5123D320 - 16 x 32 dot matrix unit

Datasheet Summary

Features

1) 16×32 dot matrix. Dot size : φ2.8mm 2) Dimensions : 64mm×128mm 3) High-Contrast & Wide-View display by Potting lens technorgy (Rohm original) 4) Single-color (Orange). 5) 1 / 16 duty dynamic scaning. 6) Wide viewing angle. (2θ1/2=140 degress) 128 P4X31=124 P4X15=60 64 (1) 13 CN1 1 10 CN3 6 1 (24.8) (40) (38.5) 118 zSpecifications For specifications, refer to “LUM unit series”. (www. rohm. com/products/databook/dp/pdf/lum-unit. pdf) (21) CN2 10 1 54 1/1 Appendix Notes No technic.

Datasheet Details

Part number	LPM-5123D320
Manufacturer	ROHM
File Size	96.42 KB
Description	16 x 32 dot matrix unit
Datasheet	LPM-5123D320 Datasheet
Additional preview pages of the LPM-5123D320 datasheet.

📁 Similar Datasheet

LPM-1153BMU602 - Full color dot matrix unit (ETC)

LPM-1153BMU702 - Full color dot matrix unit (ETC)

LPM-NE2000 - Ethernet LAN Card (ETC)

LPM013M091A - Display Module (JDI)

LPM013M126A - Display Module (JDI)

Full PDF Text Transcription

Click to expand full text

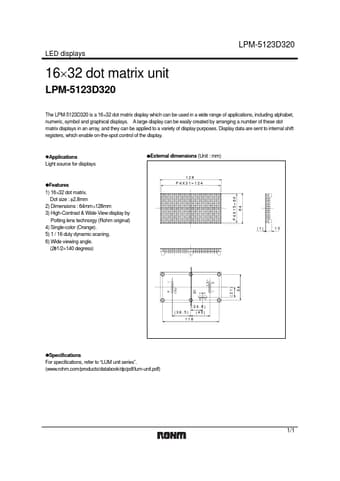

www.DataSheet4U.com LPM-5123D320 LED displays 16×32 dot matrix unit LPM-5123D320 The LPM-5123D320 is a 16×32 dot matrix display which can be used in a wide range of applications, including alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these dot matrix displays in an array, and they can be applied to a variety of display purposes. Display data are sent to internal shift registers, which enable on-the-spot control of the display. zApplications Light source for displays zExternal dimensions (Unit : mm) zFeatures 1) 16×32 dot matrix. Dot size : φ2.8mm 2) Dimensions : 64mm×128mm 3) High-Contrast & Wide-View display by Potting lens technorgy (Rohm original) 4) Single-color (Orange). 5) 1 / 16 duty dynamic scaning.
