LPM-1153BMU602 Datasheet PDF - ETC Full color dot matrix unit Specs

LPM-1153BMU602 - Full color dot matrix unit

Datasheet Summary

Features

1) 24×48 dot matrix. Dot size : φ2.8 2) Dimensions : 96mm×192mm 3) Rohm original Potting lens method make it possible to have High-Contrast & WideView display. 4) Over thousand million Colors at display is available by controlling 1,024 gray scale for each color. 5) 1 / 24 duty dynamic scan method. 6) Each color, each dot has built-in brightness adjustment circuit. 7) Brightness adjustment circuit is built-in to adjust the whole panel brightness. P4x 23=92 96 (1) 13 60 6 60 (25) (150) 18.

Datasheet Details

Part number	LPM-1153BMU602
Manufacturer	ETC
File Size	83.32 KB
Description	Full color dot matrix unit
Datasheet	LPM-1153BMU602 Datasheet
Additional preview pages of the LPM-1153BMU602 datasheet.

📁 Similar Datasheet

LPM-1153BMU801 - Full color dot matrix unit (Rohm)

LPM-5123BMU801 - Full color dot matrix unit (Rohm)

LPM-5123D320 - 16 x 32 dot matrix unit (Rohm)

LPM-5123MU350 - 16 x 32 dot matrix unit (Rohm)

LPM-5123U320 - 16 x 32 dot matrix unit (Rohm)

LPM-5123Y320 - 16 x 32 dot matrix unit (Rohm)

LPM-5763MU301 - 24 x 24 dot matrix unit (Rohm)

LPM013M091A - Display Module (JDI)

LPM013M126A - Display Module (JDI)

LPM013M126C - Display Module (JDI)

Full PDF Text Transcription

Click to expand full text

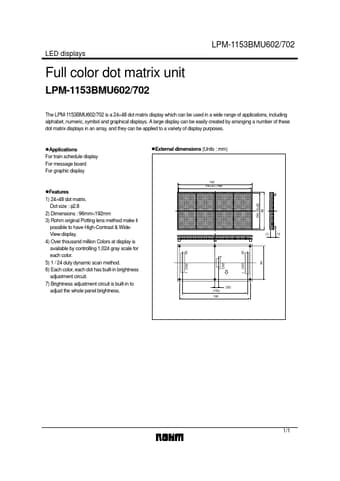

LPM-1153BMU602/702 LED displays Full color dot matrix unit LPM-1153BMU602/702 The LPM-1153BMU602/702 is a 24×48 dot matrix display which can be used in a wide range of applications, including alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these dot matrix displays in an array, and they can be applied to a variety of display purposes. !Applications For train schedule display For message board For graphic display !External dimensions (Units : mm) 192 P4x47=188 !Features 1) 24×48 dot matrix. Dot size : φ2.8 2) Dimensions : 96mm×192mm 3) Rohm original Potting lens method make it possible to have High-Contrast & WideView display.

Published: Mar 22, 2005 |
