LPM-5763MU301 Datasheet PDF - Rohm 24 x 24 dot matrix unit Specs

LPM-5763MU301 - 24 x 24 dot matrix unit

Datasheet Summary

Features

1) 24×24 dot matrix. Dot size : φ2.8mm 2) Dimensions : 96mm×96mm 3) High-contrast & Wide-viewing display by Potting lens technorgy (Rohm original) 4) Suports Three-color (red. green. orange) 5) 1/24 duty dynamic scaning. 6) Wide viewing angle (2θ1/2=140 degrees) 7) On module Four-step bright ness control. (26) (5) (18) P4X23=92 96 (1) 13 CN2 CN1 CN3 84 zSpecifications For specifications, refer to “LUM unit series”. (www. rohm. com/products/databook/dp/pdf/lum-unit. pdf) (27) 84 1/1 App.

Datasheet Details

Part number	LPM-5763MU301
Manufacturer	ROHM
File Size	103.43 KB
Description	24 x 24 dot matrix unit
Datasheet	LPM-5763MU301 Datasheet
Additional preview pages of the LPM-5763MU301 datasheet.

📁 Similar Datasheet

LPM-1153BMU602 - Full color dot matrix unit (ETC)

LPM-1153BMU702 - Full color dot matrix unit (ETC)

LPM-NE2000 - Ethernet LAN Card (ETC)

LPM013M091A - Display Module (JDI)

LPM013M126A - Display Module (JDI)

Full PDF Text Transcription

Click to expand full text

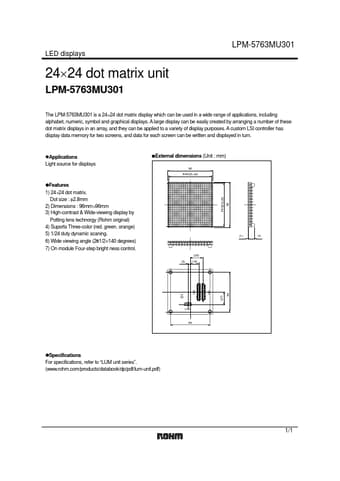

www.DataSheet4U.com LPM-5763MU301 LED displays 24×24 dot matrix unit LPM-5763MU301 The LPM-5763MU301 is a 24×24 dot matrix display which can be used in a wide range of applications, including alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these dot matrix displays in an array, and they can be applied to a variety of display purposes. A custom LSI controller has display data memory for two screens, and data for each screen can be written and displayed in turn. zApplications Light source for displays zExternal dimensions (Unit : mm) 96 P4X23=92 zFeatures 1) 24×24 dot matrix. Dot size : φ2.
