LB043WQ1-TD05 - TFT LCD

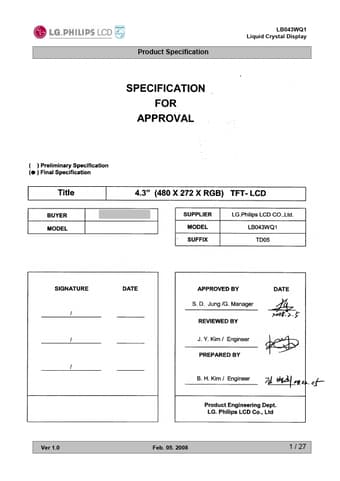

LB043WQ1-TD05 Datasheet Preview — Preview of LB043WQ1-TD05 PDF

Datasheet Details

Part number	LB043WQ1-TD05
Manufacturer	LG
File Size	1.06 MB
Description	TFT LCD
Datasheet	LB043WQ1-TD05-LG.pdf

LB043WQ1-TD05 Product details

Description

Interface Connection Absolute Maximum Ratings Electrical Characteristics Touch Screen Panel Optical Characteristics Mechanical Characteristics Color Input Data Reference Reliability Test Outline Dimension Packing Precautions Page 3 4 6 8 9 15 18 21 22 23 24 25 26 Ver 1.0 Feb.05. 2008 2 / 27 LB043WQ1 Liquid Crystal Display Product Specification RECORD OF REVISIONS Revision No Revision Date 1.0 Feb.5. 2008 Page Final Description Note Ver 1.0 Feb.05. 2008 3 / 27 LB043WQ1 Liquid Cry

Features

High brightness & contrast ratio.
Wide viewing angle.
WQVGA(480X272 pixels) resolution.
8 bits color depth.
T-Con & power block is built In D-IC.
Low power consumption.
With touch screen panel (film to glass type).
DE (Data Enable) only mode.
DE, DOTCLK G1 G3 B G R TFT-LCD Panel (480´272xRGB) G2 G4 (Scan Direction) G271 D-IC G272 User Connector 45 Pin VLED1－ X1 Y1 X2 Y2 (VDD) Input Power Input Data (RGB.
