LM181E05-C3 - Liquid Crystal Display

Product Overview

LM181E05-C3 Liquid Crystal Display by LG - Datasheet Preview — Datasheet preview – LM181E05-C3

Datasheet Details

Part number	LM181E05-C3
Manufacturer	LG
File Size	399.86 KB
Description	Liquid Crystal Display
Datasheet	LM181E05-C3 Datasheet

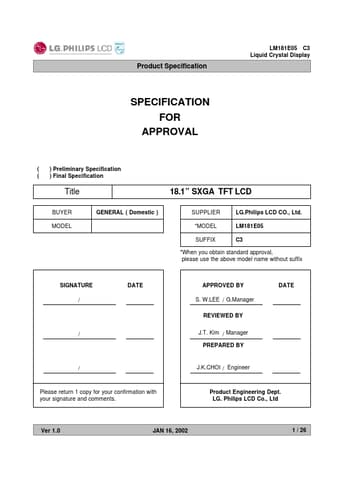

Additional preview pages of the LM181E05-C3 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVE FORMS COLOR INPUT DATA REFERANCE POWER SEQUENCE OPTICAL SPECIFICATIONS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 6 8 11 12 13 14 15 19 22 23 23 23 24 24 24 25 MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS Ver 1.0 JAN 16, 2002 2 / 26 Datasheetpdf-http://www.Data

Features

Active screen size Outline Dimension Pixel Pitch Pixel Format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments Ver 1.0 18.1 inches (45.974cm) diagonal 389.0(H) x 317.2(V) x 27.0(D) mm(Typ. ) 0.2805 mm x 0.2805 mm 1280 horizontal By 1024 vertical Pixels RGB stripe arrangement 8-bits, 16,777,216 colors 250 cd/m2(Typ. ) Total 31.62 Watt(Typ. ), (4.32Watt @Vcc, 27.3 Watt @250cd/.
³ [Lamp=7mA]) 3100g (Typ. ) Transmissive mode, normally black Hard coating.
