LM1815EP

Enhanced Plastic Adaptive Variable Reluctance Sensor Amplifier

LM1815EP Features

* Adaptive hysteresis Single supply operation Ground referenced input True zero crossing timing reference Operates from 2V to 12V supply voltage Handles inputs from 100 mVP-P to over 120VP-P with external resistor

* CMOS compatible logic

* Applications

* Sel

LM1815EP General Description

The LM1815EP is an adaptive sense amplifier and default gating circuit for motor control applications. The sense amplifier provides a one-shot pulse output whose leading edge coincides with the negative-going zero crossing of a ground referenced input signal such as from a variable reluctance magnet.

LM1815EP Datasheet (457.68 KB)

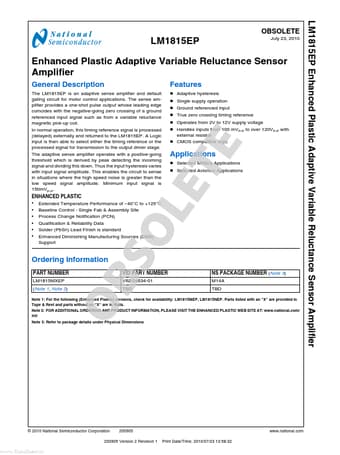

Preview of LM1815EP PDF

Datasheet Details

Part number:

LM1815EP

Manufacturer:

National Semiconductor

File Size:

457.68 KB

Description:

Enhanced plastic adaptive variable reluctance sensor amplifier.
LM1815EP Enhanced Plastic Adaptive Variable Reluctance Sensor Amplifier OBSOLETE LM1815EP July 23, 2010 Enhanced Plastic Adaptive Variable Relucta.
