LM181E06 SPECIFICATION FOR APPROVAL

NXP

LM181E06 Description

LM181E06 Liquid Crystal Display Product Specification 1.General .
The LM181E06-A4M1 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp(CCFL) backlight system.

LM181E06 Features

* Active screen size Outline Dimension Pixel Pitch Pixel Format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments Ver 1.0 18.1 inches (459.74mm) diagonal 389.0(H) x 317.2(V) x 27.0(D) mm(Typ. ) 0.2805 mm x 0.2805 mm 1280 horizontal By 1024 vertical Pixels R

LM181E06 Applications

* where thin thickness, wide viewing angle, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LM181E06-A4M1 characteristics provide an excellent flat panel display for office automation products such as monitors. G1

📥 Download Datasheet

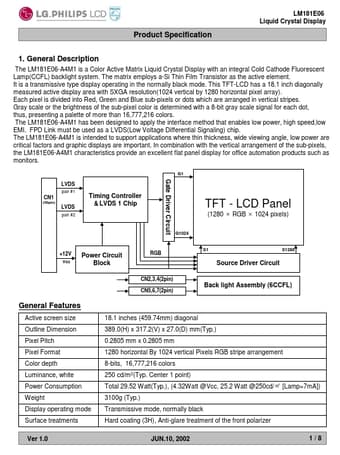

LM181E06 Datasheet Preview — Preview of LM181E06 PDF

Datasheet Details

Part number: LM181E06
Manufacturer: NXP ↗
File Size: 245.88 KB
Datasheet: LM181E06_PhilipsSemiconductors.pdf
Description: SPECIFICATION FOR APPROVAL
