2SC2482 NPN Transistor

2SC2482 Description

2SC2482 TO-92MOD Transistor (NPN) 1 1.EMITTER 2 2.COLLECTOR 3 3.BASE .

2SC2482 Features

* — High voltage :Vceo=300V — Small collector output capacitance: Cob=3.0pF(Typ) TO-92MOD 5.800 6.200 0.400 0.600 0.900 1.100 8.400 8.800 13.800 14.200 MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO IC Emit

📥 Download Datasheet

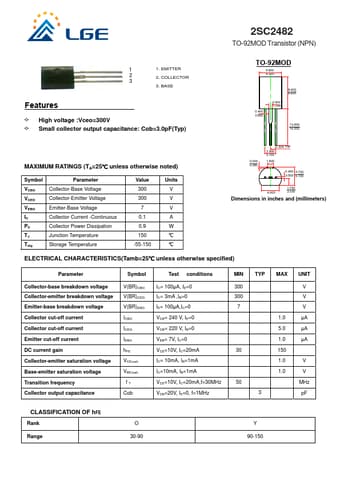

Preview of 2SC2482 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2482
Manufacturer
LGE
File Size
244.29 KB
Datasheet
2SC2482-LGE.pdf
Description
NPN Transistor
