Datasheet Specifications
- Part number
- 78L05
- Manufacturer
- LGE
- File Size
- 738.85 KB
- Datasheet
- 78L05-LGE.pdf
- Description
- Three-terminal positive voltage regulator
Description

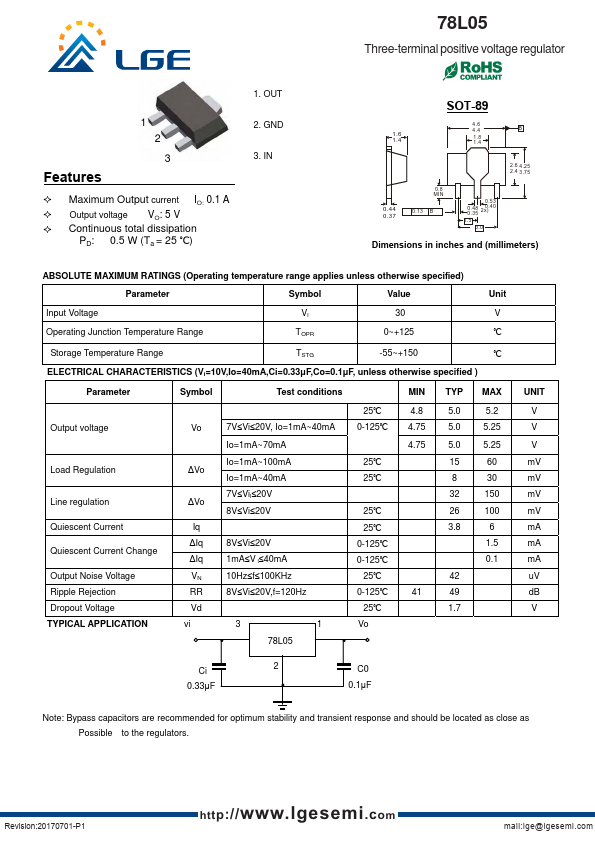

78L05 Three-terminal positive voltage regulator 1 2 3 .
Features
* Maximum Output current IO: 0.1 A Output voltage VO: 5 V Continuous total dissipation PD: 0.5 W (Ta = 25 ℃) 1. OUT 2. GND 3. IN SOT-89 4.6 4.4 B 1.6 1.8 1.4 1.4 2.6 4.25 2.4 3.75 0.44 0.37 0.8 MIN 0.13 B 0.53 0.48 0.40 2x) 0.35 1.5 3.0 Dimensions in inches and (millimeters)78L05 Distributors
