DB206S, DB201S Datasheet - LGE

DB206S Silicon Bridge Rectifiers

DB206S Features

* Rating to 1000V PRV Surge overload rating to 30 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 Lead: silver plated copper, solderde plated Plastic material has UL

DB201S-LGE.pdf

This datasheet PDF includes multiple part numbers: DB206S, DB201S. Please refer to the document for exact specifications by model.

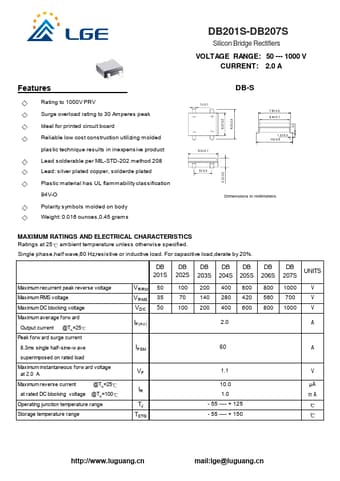

DB206S Datasheet Preview Page 2

Datasheet Details

Part number:

DB206S, DB201S

Manufacturer:

LGE

File Size:

147.69 KB

Description:

Silicon bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: DB206S, DB201S.
Please refer to the document for exact specifications by model.
