DTA143EKA, DTA143EE - PNP Digital Transistor

LGE

📥 Download Datasheet

DTA143EKA Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA143EKA, DTA143EE. Please refer to the document for exact specifications by model.

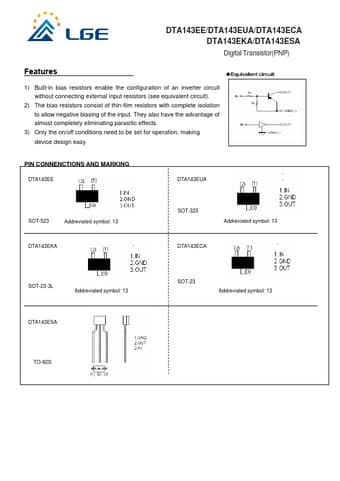

datasheet Preview Page 2

Datasheet Details

Part number: DTA143EKA, DTA143EE
Manufacturer: LGE
File Size: 130.57 KB
Datasheet: DTA143EE-LGE.pdf
Description: PNP Digital Transistor
Note: This datasheet PDF includes multiple part numbers: DTA143EKA, DTA143EE.
Please refer to the document for exact specifications by model.

DTA143EKA Product details

Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy. PIN.
