S3J

3.0AMPS. Surface Mount Rectifiers

S3J Features

* For surface mounted application Glass passivated junction chip. Low forward voltage drop High current capability Easy pick and place High surge current capability Plastic material used carries Underwriters Laboratory Classification 94V-0 High temperature soldering: 260oC / 10 seconds at terminals

S3J Datasheet (140.54 KB)

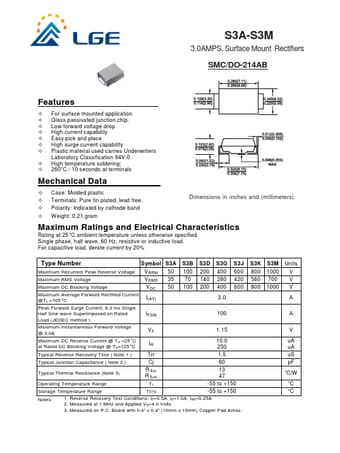

Preview of S3J PDF

Datasheet Details

Part number:

S3J

Manufacturer:

LGE

File Size:

140.54 KB

Description:

3.0amps. surface mount rectifiers.
