S3JB

Rectifier

MCC

S3JB Features

* Halogen Free. "Green" Device (Note 1)

* Glass Passivated Chip Junction

* High Forward Surge Capability

* Epoxy Meets UL 94 V-0 Flammability Rating

* Moisture Sensitivity Level 1

* Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Co

S3JB General Description

1 cathode Simplified outline 2 anode 1 MCC 2 XXXX XXXX = Marking code Graphic symbol 1 2 Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 2. High Temperature Solder Exempti.

S3JB Datasheet (813.15 KB)

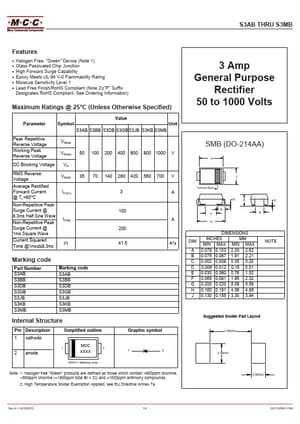

S3JB Datasheet Preview — Preview of S3JB PDF

Datasheet Details

Part number:

S3JB

Manufacturer:

MCC

File Size:

813.15 KB

Description:

Rectifier.
