S3J - 3.0 A Surface Mount Silicon Rectifier

Datasheet Summary

Features

Ideal for surface mount.

S3J 3.0 A Surface Mount Silicon Rectifier by SEP ELECTRONIC - Datasheet Preview — Datasheet preview – S3J

Datasheet Details

Part number	S3J
Manufacturer	SEP ELECTRONIC
File Size	25.93 KB
Description	3.0 A Surface Mount Silicon Rectifier
Datasheet	S3J Datasheet
Additional preview pages of the S3J datasheet.

📁 Similar Datasheet

S3J - 3.0AMPS. Surface Mount Rectifiers (LGE)
S3J - Surface Mount Rectifier (Taiwan Semiconductor)
S3J - 3.0A Surface Mount Rectifier (TAITRON)
S3J - General-Purpose Rectifiers (ON Semiconductor)
S3J - 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE (WON-TOP)
S3J - General-Purpose Rectifiers (Fairchild Semiconductor)
S3J - SURFACE MOUNT RECTIFIER (General Semiconductor)
S3J - 3 Amp Silicon Rectifier 50 to 1000 Volts (Micro Commercial Components)
S3J - SURFACE MOUNT RECTIFIER(VOLTAGE- 50-100 Volts CURRENT- 3.0 Ampere) (Pan Jit International Inc.)
S3J - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER (Dc Components)

Other Datasheets by SEP ELECTRONIC

Full PDF Text Transcription

Click to expand full text

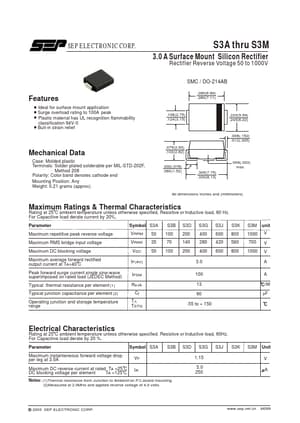

SEP ELECTRONIC CORP. S3A thru S3M 3.0 A Surface Mount Silicon Rectifier Rectifier Reverse Voltage 50 to 1000V SMC / DO-214AB Features Ideal for surface mount application Surge overload rating to 100A peak Plastic material has UL recognition flammability classification 94V-0 Buit-in strain relief Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202F, Method 208 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.21 grams (approx) .260(6.60) .280(7.11) .108(2.75) .124(3.15) .220(5.59) .245(6.22) .079(2.00) .103(2.62) .030(.076) .060(1.52) .305(7.75) .320(8.13) .006(.152) .012(.305) .008(.203) max.
