S3JFS - 600V Standard Surface Mount Rectifier

Taiwan Semiconductor

S3JFS Description

S3JFS Taiwan Semiconductor 3A, 600V Standard Surface Mount Rectifier .
only.

S3JFS Features

* Glass passivated chip junction
* Ideal for automated placement
* Low profile package
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

S3JFS Applications

* DC to DC converter
* Switching mode converters and inverters
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF 3 A VRRM 600 V IFSM 50 A TJ MAX 150 °C Package SOD-128 Configuration Single die MECHANICAL DATA
* Case: SOD-128
* Molding compound meets UL

📥 Download Datasheet

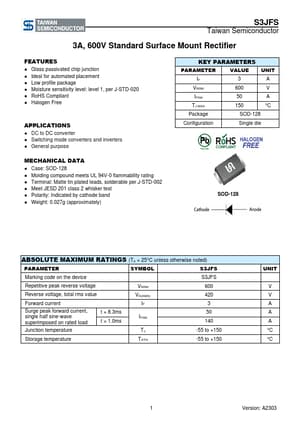

S3JFS Datasheet Preview — Preview of S3JFS PDF

Datasheet Details

Part number: S3JFS
Manufacturer: Taiwan Semiconductor
File Size: 228.42 KB
Datasheet: S3JFS-TaiwanSemiconductor.pdf
Description: 600V Standard Surface Mount Rectifier
