S3JBF - Surface Mount Rectifiers

Datasheet Summary

Features

  • For surface mounted.

📥 Download Datasheet

Datasheet preview – S3JBF

Datasheet Details

Part number S3JBF
Manufacturer GME
File Size 455.57 KB
Description Surface Mount Rectifiers
Datasheet download datasheet S3JBF Datasheet
Additional preview pages of the S3JBF datasheet.

📁 Similar Datasheet

  • S3JBF - SURFACE MOUNT RECTIFIER DIODES (Sunmate)
  • S3JBF - Rectifier Diodes (Kexin)
  • S3JBF - SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIERS (AiT Semiconductor)
  • S3JBF - SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER (EIC)
  • S3JBF - GENERAL PURPOSE SILICON RECTIFIER (DC COMPONENTS)
  • S3JB - Rectifier (MCC)
  • S3JB - 3.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER (Diodes)
  • S3JB - 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE (Won-Top Electronics)
  • S3JB - 3.0 AMPS. Surface Mount Rectifiers (Taiwan Semiconductor)
  • S3JB - SURFACE MOUNT GLASS PASSIVATED RECTIFIERS (HY ELECTRONIC)
Other Datasheets by GME
  • S3JB - Surface Mount Rectifiers
  • S3JCF - Surface Mount Rectifiers

Full PDF Text Transcription

Click to expand full text

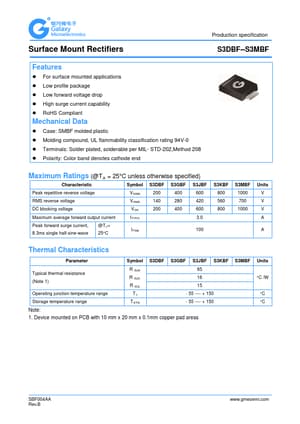

Surface Mount Rectifiers Production specification S3DBF--S3MBF Features  For surface mounted applications  Low profile package  Low forward voltage drop  High surge current capability  RoHS Compliant Mechanical Data  Case: SMBF molded plastic  Molding compound, UL flammability classification rating 94V-0  Terminals: Solder plated, solderable per MIL- STD-202,Method 208  Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol S3DBF S3GBF S3JBF Peak repetitive reverse voltage V RRM 200 400 600 RMS reverse voltage VRMS 140 280 420 DC blocking voltage VDC 200 400 600 Maximum average forward output current I F(AV) 3.0 Peak forward surge current, 8.
