SR220

2.0 AMP Schottky Barrier Rectifiers

SR220 Features

* — Metal-Semiconductor junction with guard ring — Epitaxial construction — Low forward voltage drop,low switching losses — High surge capability — For use in low voltage,high frequency inverters free wheeling,and polarity protection applications — The plastic material carries U/L recognition 94V-0 D

SR220 Datasheet (160.01 KB)

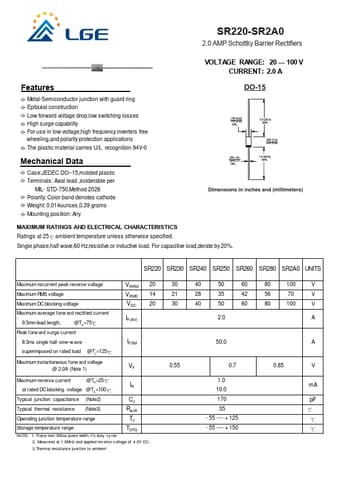

Preview of SR220 PDF

Datasheet Details

Part number:

SR220

Manufacturer:

LGE

File Size:

160.01 KB

Description:

2.0 amp schottky barrier rectifiers.
