LTPL-C034UVH405 - C03 UV LED HIGH POWER

Product Overview

LITE-ON Electronics

Datasheet Details

Part number	LTPL-C034UVH405
Manufacturer	LITEON Electronics
File Size	493.72 KB
Description	C03 UV LED HIGH POWER
Datasheet	LTPL-C034UVH405 Datasheet
Note	This datasheet PDF includes multiple part numbers: LTPL-C034UVH405, LTPL-C034UVH365-LITE. Please refer to the document for exact specifications by model.

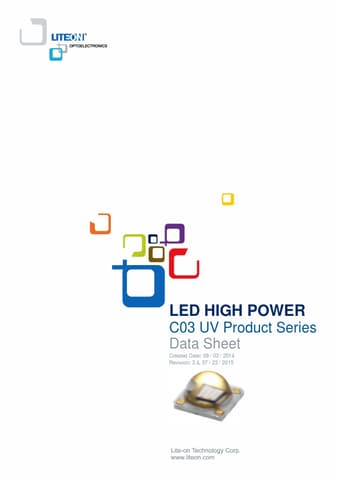

Additional preview pages of the LTPL-C034UVH405 datasheet.

Product details

Description

The LiteON C03 UV Product series is a revolutionary, energy efficient light source for UV curing and common UV application, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional light source.

Features

I. C. compatible.
RoHS compliant and Pb free.
Lower operating costs.
Reduced maintenance costs 1.2 Available Part Numbers Nominal peak wavelength (nm) W365 W385 W405 Forward Voltage 4.0V 3.7V 3.7V Part Number LTPL-C034UVH365 LTPL-C034UVH385 LTPL-C034UVH405 02 BNC-OD-C131/A4 Created Date: 09/03/2014 Revision: 3.4, 07/23/2015 2. Outline Dimensions 2.1 Form Factor.
LTPL-C034UVHXXX LED HIGH POWER C03 UV Product Series Notes 1. All dimensions are in millimeters and di.
