LTPL-G35UVC275GS - Specific Lighting

Product Overview

LITEON

Datasheet Details

Part number	LTPL-G35UVC275GS
Manufacturer	LITEON
File Size	528.48 KB
Description	Specific Lighting
Datasheet	LTPL-G35UVC275GS Datasheet
Additional preview pages of the LTPL-G35UVC275GS datasheet.

Product details

Description

The LiteON LTPL-G35UVC product series is a revolutionary, energy efficient light source for sterilization and medical application, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional light source.

Features

I. C. compatible.
RoHS compliant and Pb free.
Lower operating costs.

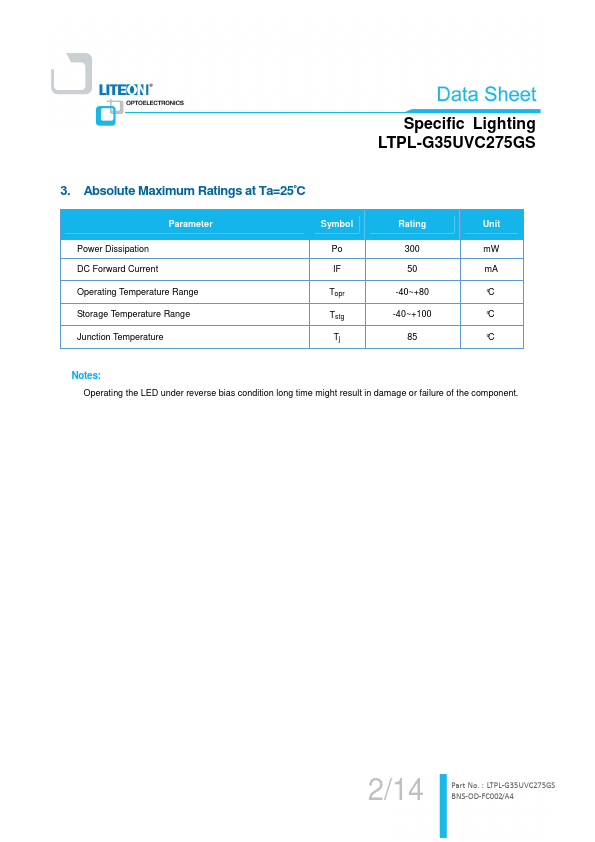

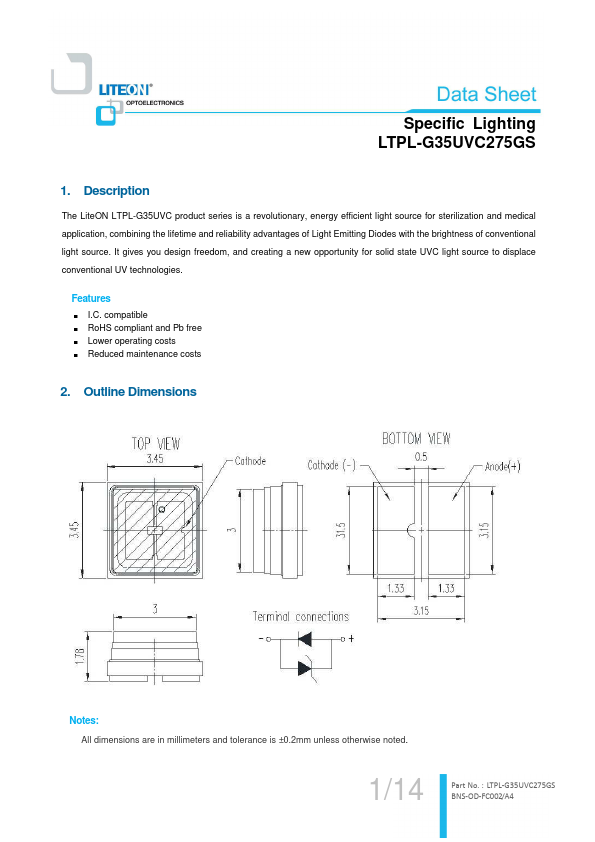

Reduced maintenance costs 2. Outline Dimensions Notes: All dimensions are in millimeters and tolerance is ±0.2mm unless otherwise noted. 1/14 Part No. : LTPL-G35UVC275GS BNS-OD-FC002/A4 Specific Lighting LTPL-G35UVC275GS 3. Absolute Maximum Ratings at Ta=25°C Parameter Power Dissipation DC Forward Current Operating Temperature Range Storage Temperature Range Junction Temperature Symbol Po IF Topr Tstg.
