LTPL-C034UVD365 - Specific Lighting

Product Overview

LITEON

Datasheet Details

Part number	LTPL-C034UVD365
Manufacturer	LITEON
File Size	507.01 KB
Description	Specific Lighting
Datasheet	LTPL-C034UVD365 Datasheet
Additional preview pages of the LTPL-C034UVD365 datasheet.

Product details

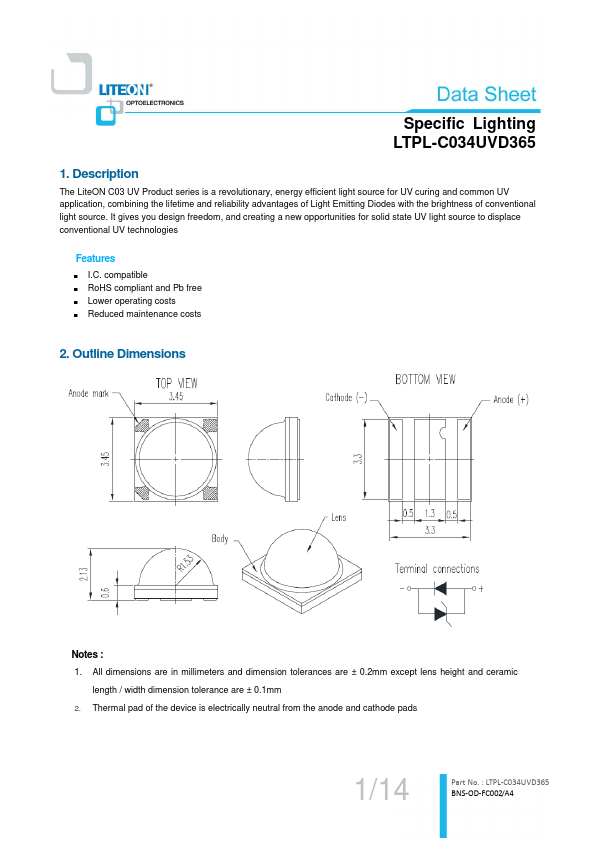

Description

The LiteON C03 UV Product series is a revolutionary, energy efficient light source for UV curing and common UV application, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional light source.

Features

I. C. compatible.
RoHS compliant and Pb free.
Lower operating costs.
Reduced maintenance costs 2. Outline Dimensions Notes : 1. All dimensions are in millimeters and dimension tolerances are ± 0.2mm except lens height and ceramic length / width dimension tolerance are ± 0.1mm 2. Thermal pad of the device is electrically neutral from the anode and cathode pads 1/14 Part No. : LTPL-C034UVD365 BNS-OD-FC002/A4 3. Absolute Maximum Ratings at Ta=25°C Specific Lighting LTPL-C03.
