LTPL-C0676WPGB Datasheet - LITEON

LTPL-C0676WPGB, SMD LED

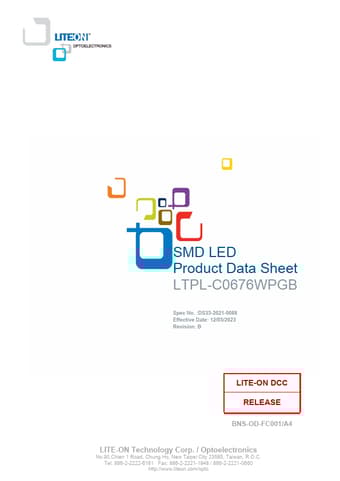

SMD LED Product Data Sheet LTPL-C0676WPGB Spec No.:DS35-2021-0088 Effective Date: 12/05/2023 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON .
LITEON FLASH is a compact power LED light source specifically designed to provide greater amounts of light where needed, enabling higher resolution pi.
 Datasheet Preview Page 1

LTPL-C0676WPGB-LITEON.pdf

Preview of LTPL-C0676WPGB PDF

Datasheet Details

Part number:

LTPL-C0676WPGB

Manufacturer:

LITEON

File Size:

530.19 KB

Description:

SMD LED

Features

* Highest brightness SMD Flash LED
* Instant Turn On. Very small emitter size

Applications

* Cameraphones
* Handhelds

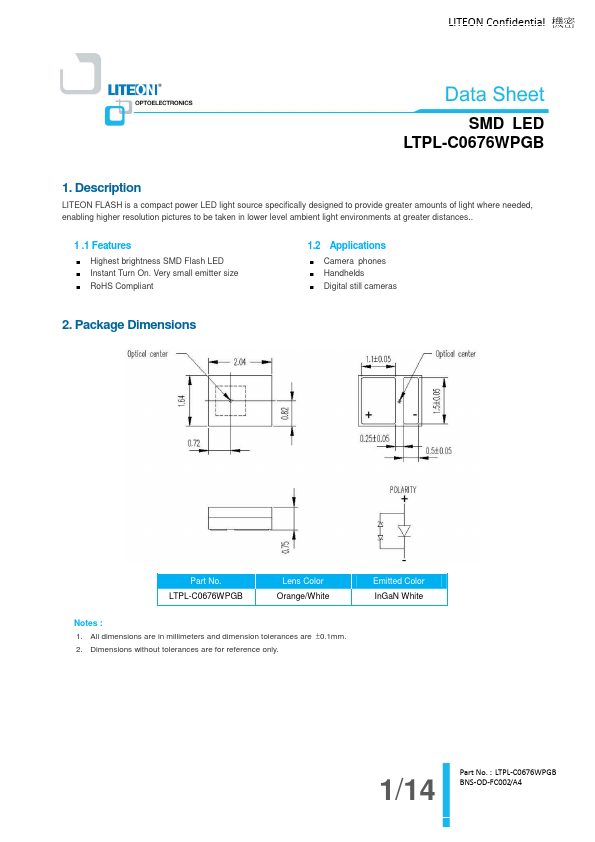

* Digital still cameras 2. Package Dimensions Part No. LTPL-C0676WPGB Lens Color Orange/White Notes : 1. All dimensions are in millimeters and dimension tolerances are ±0.1mm. 2. Dimensions without tolerances are for reference only. Emitted Color InGaN Wh
