2N7002K, 2N7002K-LITE Datasheet - LITE-ON

2N7002K - N-channel MOSFET

2N7002K Features

* Low on-resistance. Fast switching speed. Low voltage drive. Halogen free ESD protected 2000V Application DC-DC Portable appliance Power management 2N7002K BVDSS= 60V , RDS(ON)< 2.3Ω@VGS= 10V RDS(ON)< 2.7Ω@VGS= 5V ID= 380mA Absolute Maximum Ratings (TA=25℃Unless Otherwise Noted) Parameter Symbol

2N7002K-LITE-ON.pdf

This datasheet PDF includes multiple part numbers: 2N7002K, 2N7002K-LITE. Please refer to the document for exact specifications by model.

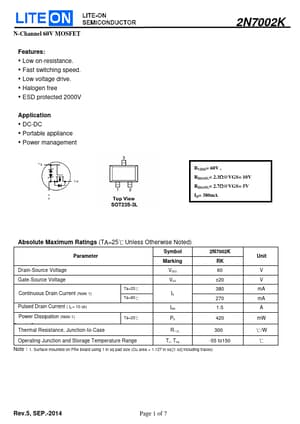

2N7002K Datasheet Preview Page 2 2N7002K Datasheet Preview Page 3

Datasheet Details

Part number:

2N7002K, 2N7002K-LITE

Manufacturer:

LITE-ON

File Size:

405.66 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: 2N7002K, 2N7002K-LITE.
Please refer to the document for exact specifications by model.
