LTV-4506M Photocoupler

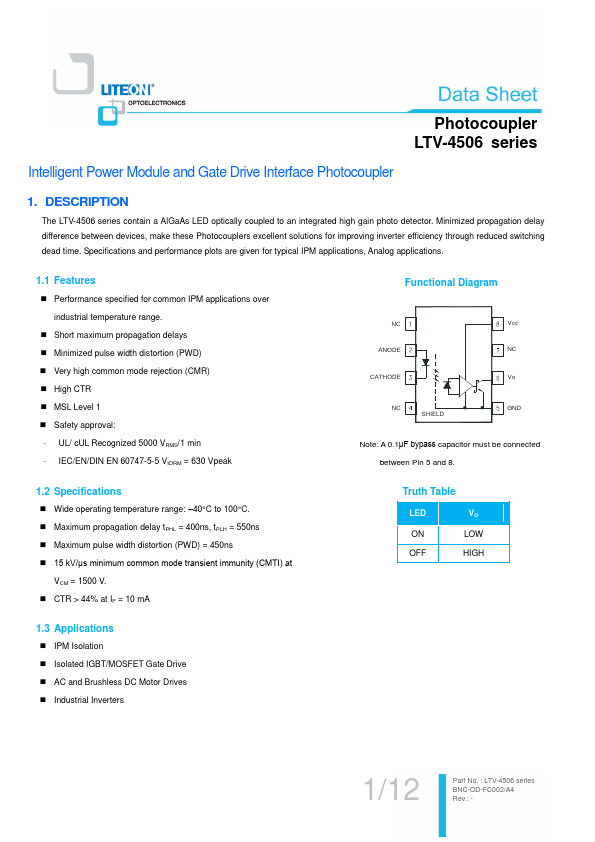

The LTV-4506 series contain a AlGaAs LED optically coupled to an integrated high gain photo detector. Minimized propagation delay difference between devices, make these Photocouplers excellent solutions for improving inverter efficiency through reduced switching dead time. Specifications and perform.

LTV-4506M Features

* Performance specified for common IPM applications over industrial temperature range.

* Short maximum propagation delays

* Minimized pulse width distortion (PWD)

* Very high common mode rejection (CMR)

* High CTR

* MSL Level 1

* Safety approval:

* UL/ cUL Recogni

LTV-4506-LITEON.pdf

LTV-4506M Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-4506M, LTV-4506. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTV-4506M, LTV-4506

Manufacturer:

LITE-ON

File Size:

709.71 KB

Description:

Photocoupler.

Note:

This datasheet PDF includes multiple part numbers: LTV-4506M, LTV-4506.
Please refer to the document for exact specifications by model.
