LTV-480W, LTV-480W-LITE - OPTOCOUPLER

LITE-ON

📥 Download Datasheet

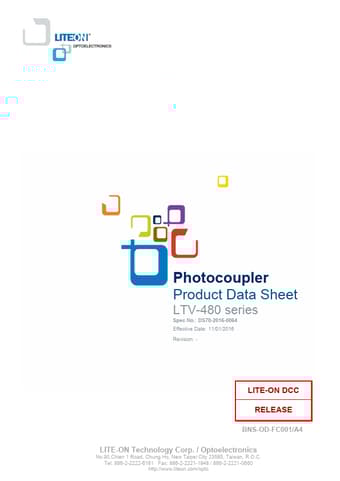

LTV-480W Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-480W, LTV-480W-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: LTV-480W, LTV-480W-LITE
Manufacturer: LITE-ON
File Size: 718.61 KB
Datasheet: LTV-480W-LITE-ON.pdf
Description: OPTOCOUPLER
Note: This datasheet PDF includes multiple part numbers: LTV-480W, LTV-480W-LITE.
Please refer to the document for exact specifications by model.

LTV-480W Product details

Description

The LTV-480 series fast speed photocoupler contains a AlGaAs LED and photo detector with built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping.

Features

Positive output type (totem pole output).
Truth Table Guaranteed: VCC from 4.5V to 30V.
Performance Specified for Common IPM.
