* Rating to 200V VBR For surface mounted applications Reliable low cost construction utilizing molded plastic technique Plastic material has UL flammability classification 94V-O Typical IR less than 1uA above 10V Fast response time: typically less than 1.0ps for Uni-direction,less than 5.0ns for Bi-di
SMA51
LITE-ON
48.59 KB
Transient voltage suppressors.

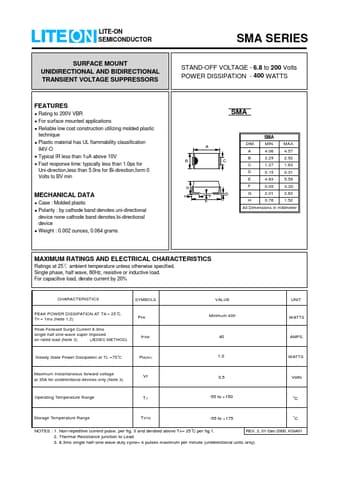

LITE-ON SEMICONDUCTOR
SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS
SMA SERIES
STAND-OFF VOLTAGE - 6.8 to 200 Volts PO.
