SMA5105 N-channel With built-in flywheel diode

SMA5105 Absolute maximum ratings Symbol VDSS VGSS ID ID(pulse) EAS IF IFSM VR PT Ratings 100 ±10 ±5 ±10 (PW≤1ms) 32 5 (PW≤0.5ms, Du≤25%) 10 (PW≤10ms, Single pulse) 120 4 (Ta=25°C, with all circuits operating, without heatsink) 28 (Tc=25°C,with all circuits operating, with infinite heatsink) 31.2 (Junction-Air, Ta=25°C, with all circuits operating) 4.46 (Junction-Case, Tc=25°C, with all circuits operating) 150 40 to +150 N-channel With built-in flywheel diode (Ta=25°C) External di.

SMA5105_Sankenelectric.pdf

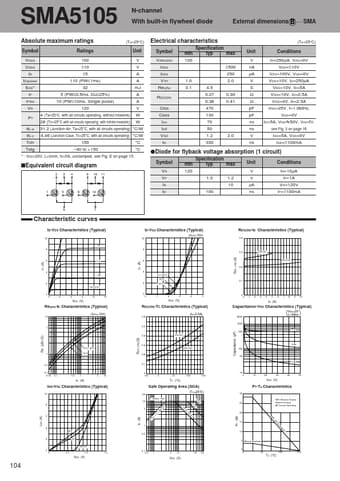

Preview of SMA5105 PDF
